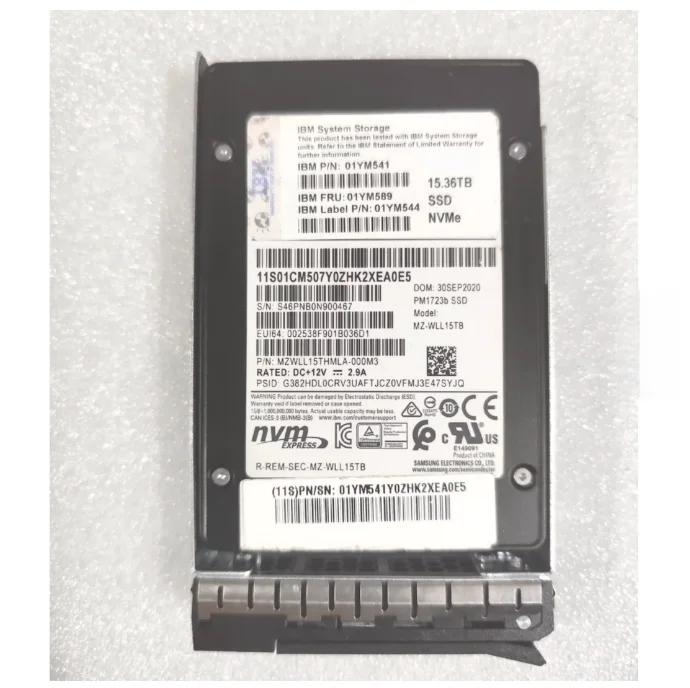

Storage Flagship 15.36TB NVMe Hard Drive Dual Models Available 01YM541/01CM507 PM1723B Enterprise Grade Disk Body

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1,Product Overview

This is a customized and certified enterprise grade NVMe solid state drive with extremely high durability.Its core positioning is as the core storage medium for high-end storage systems (such as FlashSystem 9x00 series), used to carry the most demanding and write intensive critical enterprise workloads.The PM1723B in the model specifies its basic hardware platform, while 01YM541 and 01CM507 are exclusive FRU (field replaceable unit) part numbers used for IBM's internal spare parts, warranty, and service tracking.

2.Core specification parameters

Project| Specification Description|

|Brand and Model| IBM (customized based on Samsung Enterprise NVMe platform, disk model PM1723B)|

|Part Number (FRU)| 01YM541/01CM507|

|Universal Model| Samsung PM1723B|

|Interface Protocol| NVMe 1.3|

|Physical Interface| 2.5-inch U.2 (SFF-8639)|

|Capacity| 15.36 TB|

|NAND Flash Memory Type| 3D TLC (Triple Level Cell) NAND|

|Key features| High durability, dual port NVMe, enterprise level reliability|

3.Performance characteristics(based on typical specifications of PM1723B)

High performance: As an enterprise grade NVMe SSD, its performance far exceeds SATA/SAS interface products.

Sequential read speed: up to 6500 MB/s

Sequential write speed: up to~4000 MB/s

Random read IOPS: up to 1000K (1 million)

Random write IOPS: up to 250K

Ultimate durability: This is the core advantage of the PM1723B series, designed specifically for writing intensive applications.

DWPD (Daily Full Disk Write Count): up to 10 (meaning 153.6 TB of data can be written per day during the 5-year warranty period)

TBW (lifetime write byte count): up to 28000 TBW (i.e.2800000 GB

High reliability: MTBF (Mean Time Between Failures) can reach up to 2 million hours, providing extremely high operational stability.

4.Core Technologies and Functions

NVMe dual port access: Supports Active Active dual controller access.This is a key technology for achieving high availability (HA) in enterprise level storage arrays.When one controller, path, or port fails, another can seamlessly take over immediately, ensuring zero interruption of business.

Power outage protection: Built in comprehensive power outage protection (PLP) circuit, usually including tantalum capacitors and other components.In the event of an unexpected power outage, it can provide sufficient power to the hard drive to fully write the cached data into NAND flash memory, ensuring absolute data integrity.

Enterprise level data protection: supports end-to-end data path protection, advanced ECC error correction, RAID protection mechanism, and comprehensive S.M.A.R.T.attribute monitoring to ensure the security of the entire data link from the host to the NAND grain.

Advanced flash management: equipped with powerful garbage collection, wear leveling, and bad block management algorithms, maximizing hard drive lifespan and performance consistency.

5.Application scenarios

This hard drive is designed for extremely demanding write environments, with typical applications including:

FlashSystem 9x00 series all flash storage array: serving as the core driver for performance and capacity layers.

Large online transaction processing systems, such as core databases for banks and securities (Oracle, DB2).

Virtualization and VDI infrastructure: carrying a large number of concurrent intensives write operations for virtual machines.

Log based databases and analysis platforms: applications that require continuous recording of large amounts of data.

Data warehousing and big data analysis: ETL processes and other write intensive tasks.

6.Compatibility and usage

Main platform: dedicated to FlashSystem 9200/9100, 7200, and other IBM storage systems that support NVMe U.2 dual port drivers.

Compatibility notes: Although the physical interface is standard U.2, its dual port functionality and customized firmware strongly rely on the underlying support of IBM storage controllers.It is not recommended to use it for non-IBM servers or third-party storage devices as critical features may not be recognized or enabled.

Management and maintenance: Management, monitoring, firmware upgrades, and fault diagnosis need to be carried out through the IBM Storage Manager suite. All operations should follow IBM& # 39;s official guidance.
