ZTE PRWG DC power ZTE OLT C320 C300 PRAM PRWH
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Overview

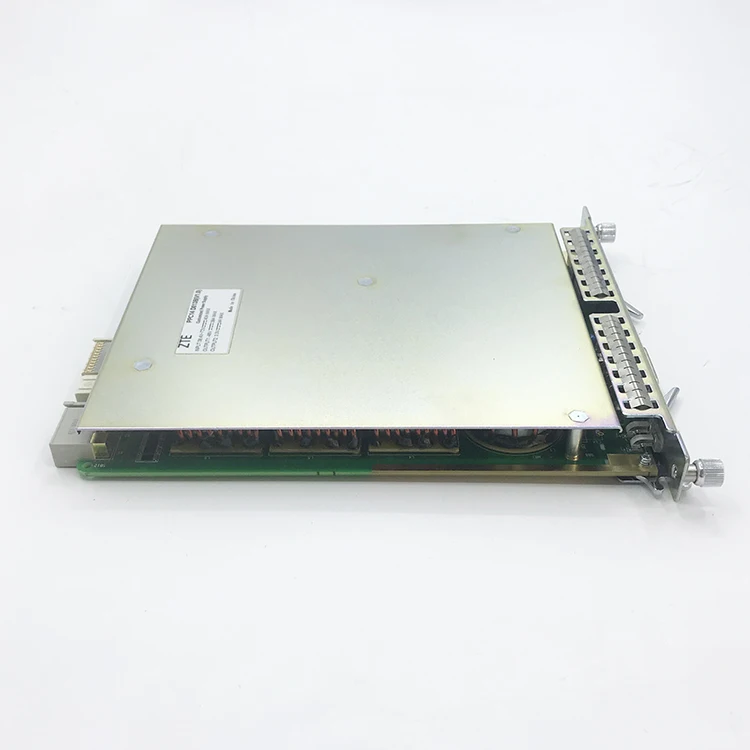

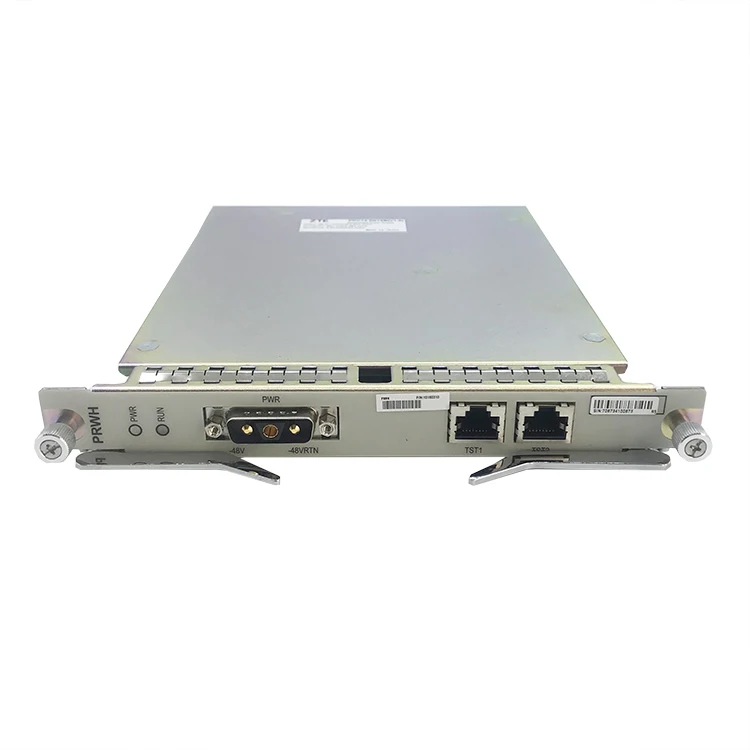

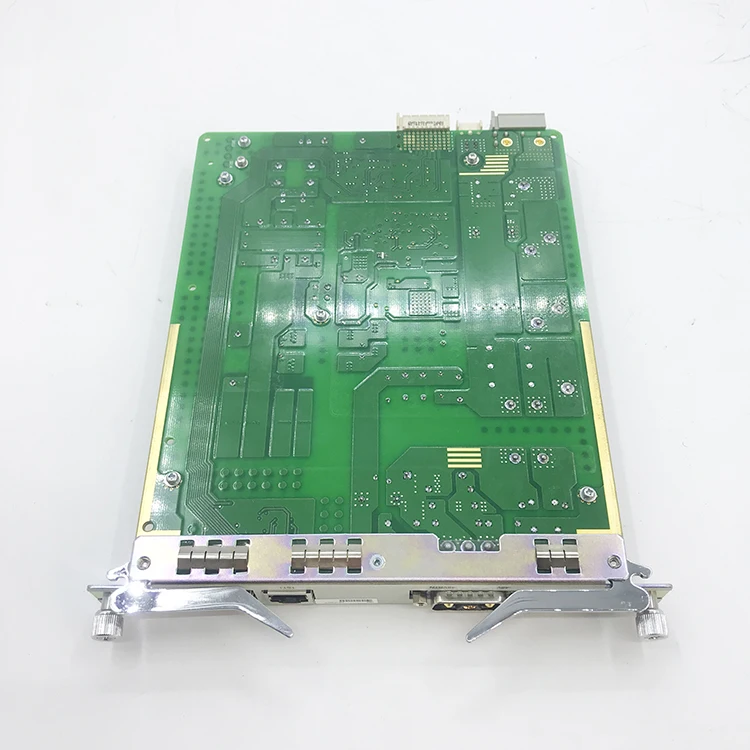

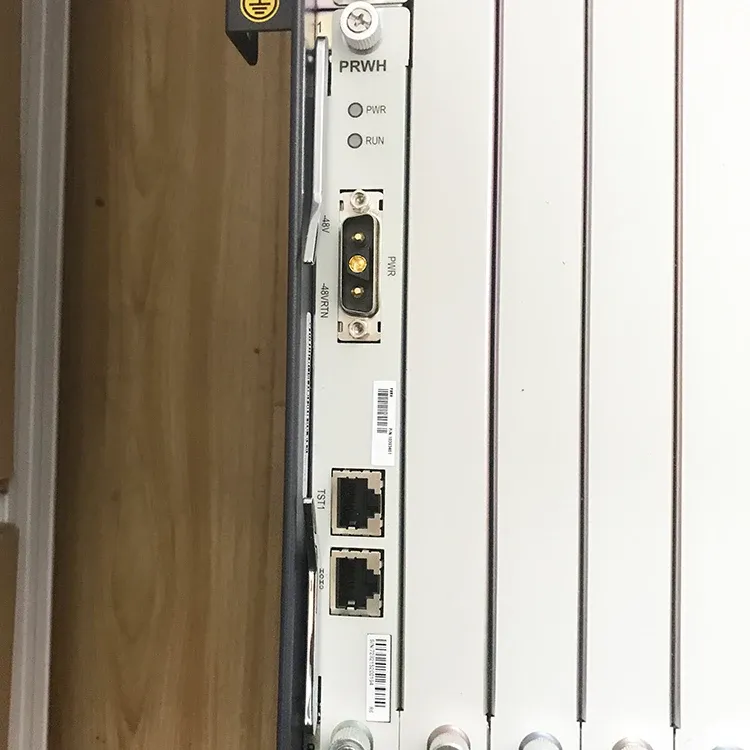

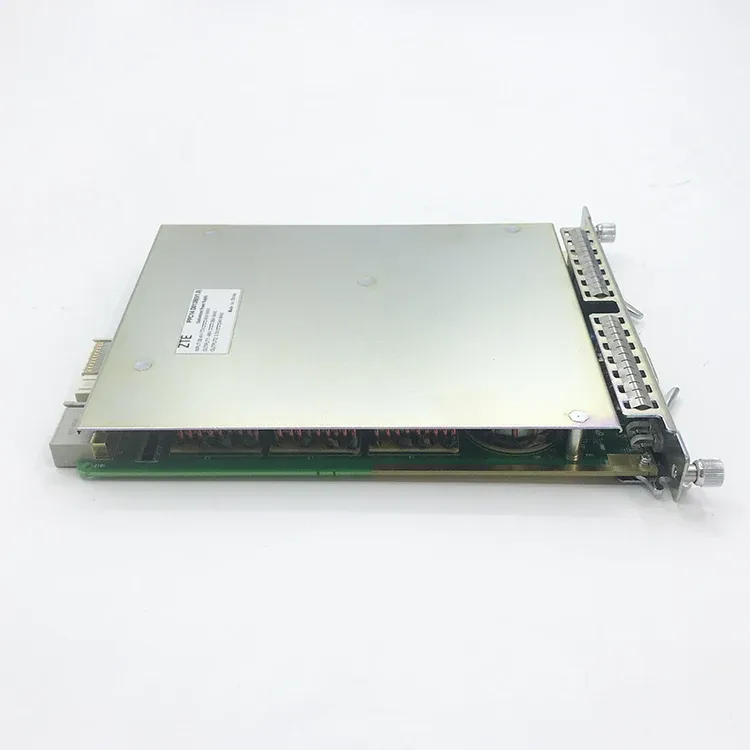

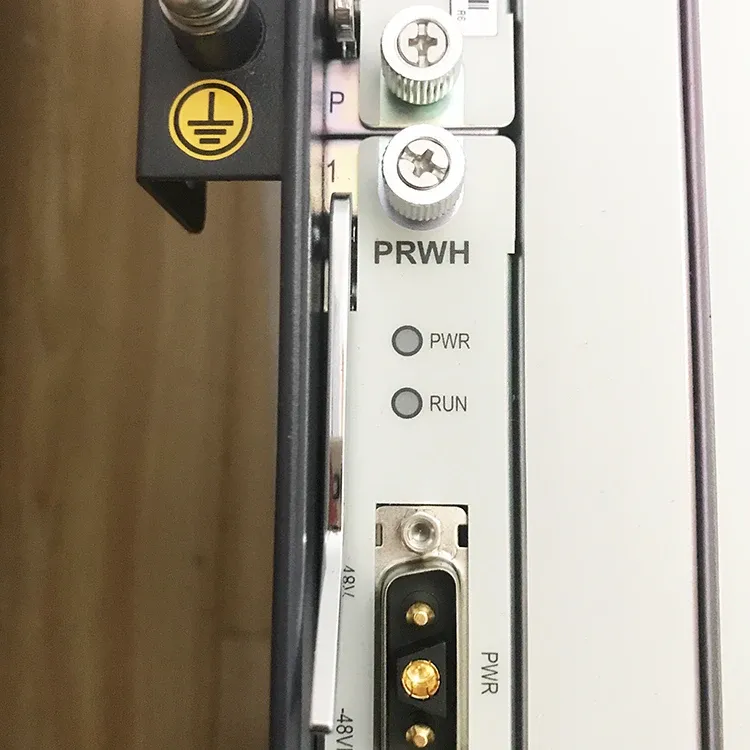

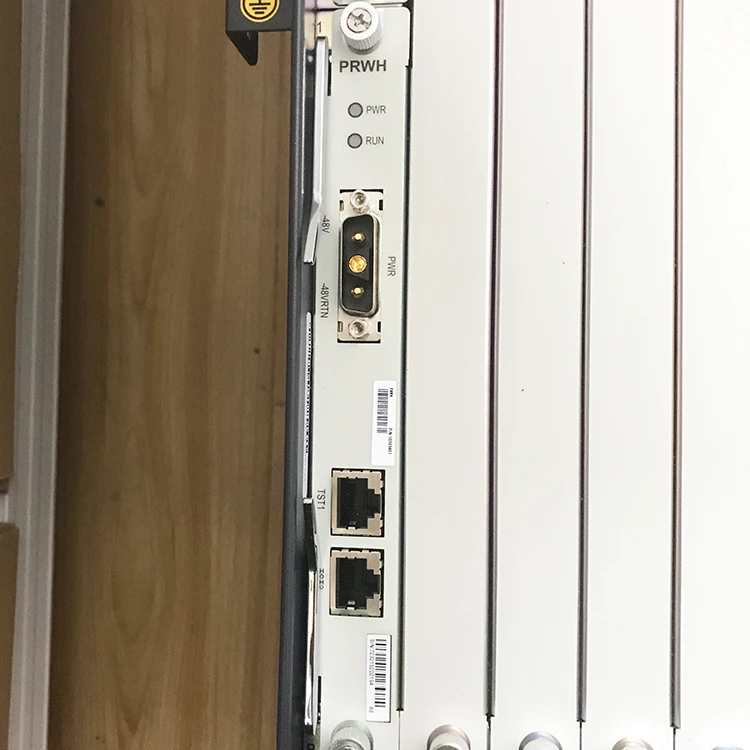

ZTE PRWH Power Board is intended for installation on the ZTE C300 chassis.It is equipped with two RJ-45 control interfaces and one power port.
The dimensions is 197.75 mm × 25 mm × 225 mm, and its horizontal placement in the chassis significantly saves useful space for the installation of other expansion cards.
ZTE PRWH Power Board has additional system monitoring functions.Environment main features: Filtration and current limitation for input power status monitor and alarm indicator, etc.Support of electric serial number Built-in temperature sensor Voltage, current and power functions
Specification
| Indicator | Status | Description |
| Brand | ZTE | |
| Model | PRWH | |
| RUN | LED is OFF | The card is powered off l The card does not match l CPU is not started |
| Green LED is ON | The card self-checking completes but fails to receive data from the switching and control card or NM | |
| Green LED flashes irregularly | The card is downloading data from the network management server | |
| Green LED flashes slowly (05 Hz) | The card runs properly | |
| Red LED is ON | Card hardware failure | |
| Red LED flashes slowly (05 Hz) | The card is plugged in the wrong slot | |
| Yellow LED flashes slowly (05 Hz) | The software version of the card does not match that of the switching and control card Auto-update is not configured on the card | |
| ACTi (i = 1–16) | LED is OFF | No ONU is configured on the EPON interface |
| The EPON interface has no optical module installed | ||
| The EPON interface is shutdown | ||
| The EPON interface is TypeB protection port | ||
| Green LED flashes | The EPON interface and connected ONUs work properly | |
| Red LED is ON | The EPON interface has Loss Of Signal (LOS) alarms | |
Product Pictures
