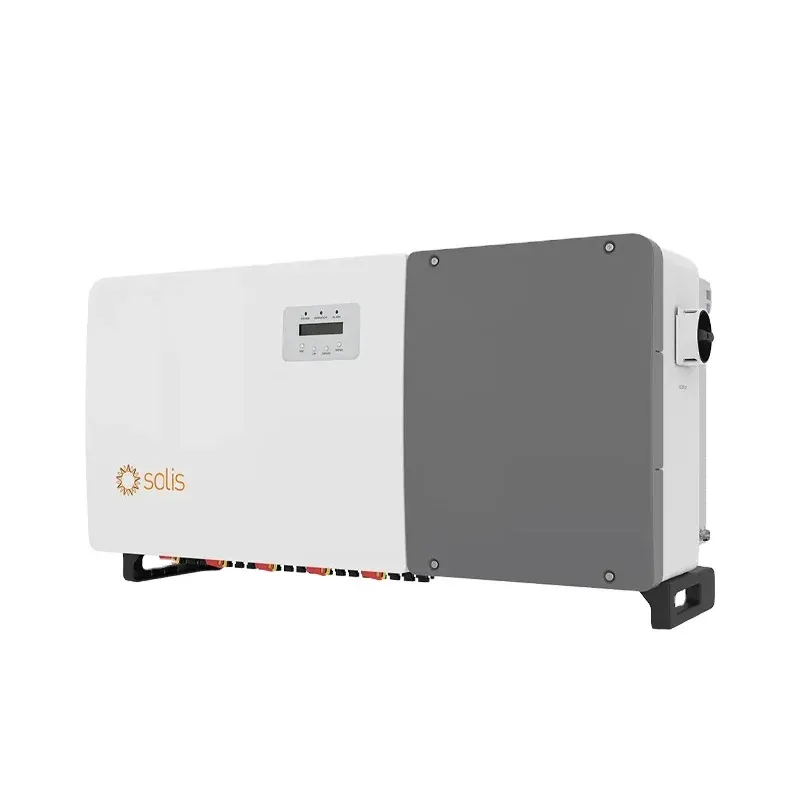

Solis 100kw Inverter on Grid Us Solar Inverters 80kw 90kw for Commercial Use

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Products Description

Models	75K	80K	90K	100K	125K
Input DC
Max.input voltage	1000 V
Rated voltage	600 V							720 V
Start-up voltage	195 V
MPPT voltage range	180-1000 V
Max. input current	8*32 A	9*32 A	10*32 A
Max.short circuit current	8*50 A	9*50 A	10*50 A
MPPT number/Max.input strings number	8/16	9/18	10/20
Output AC
Rated output power	75 kW	80 kW	90 kW	100 kW	125 kW
Max.apparent output power	75 kVA	80 kVA	90 kVA	100 kVA	125 kVA
Max.output power	75 kW	80 kW	90 kW	100 kW	125 kW
Rated grid voltage	3-phase/PE, 480 V
Rated grid frequency	60 Hz
Max.output current	90.2 A	96.2 A	108.3 A	120.3 A	150.4 A
Power Factor	>0.99 (0.8 leading - 0.8 lagging)
THDi	<3%
Efficiency
Max.efficiency	98.7%			98.8%
CEC efficiency	98.3%			98.2%
Protection
DC reverse-polarity protection	Yes
Surge protection	DC Type II / AC Type II
Ground fault monitoring	Yes
Anti-islanding protection	Yes
Strings monitoring	Yes
I/V Curve scanning	Yes
Rapid shutdown	Yes
Integrated AFCI	Yes
Integrated PID recovery	Yes

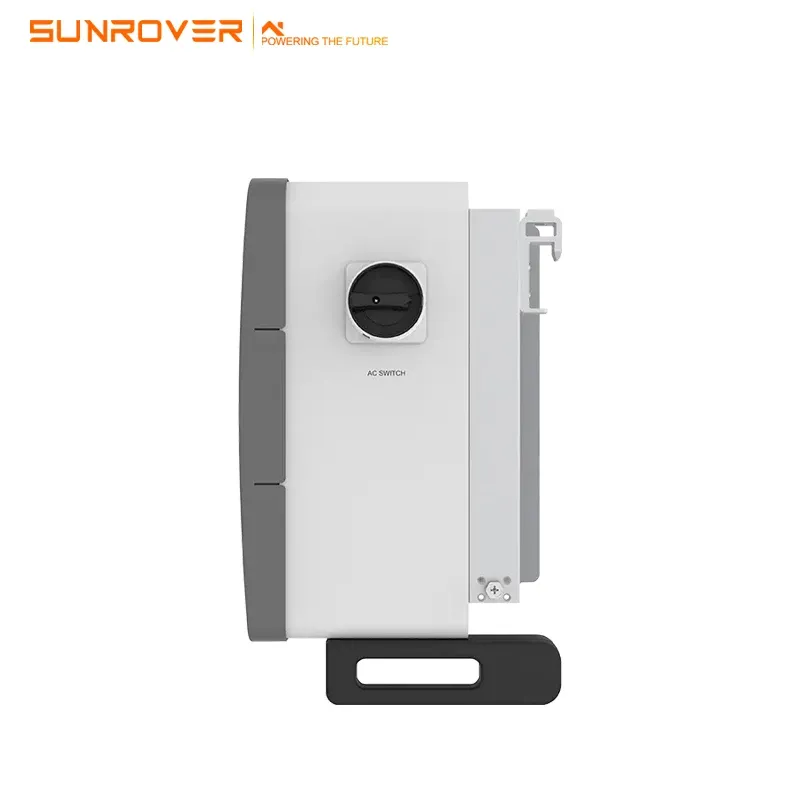

AC switch	Yes
General Data
Dimensions (W*H*D)	41.9*22.3*13.6 in (1065*567*344.5 mm)
Weight	187 lbs (85 kgs)							200 lbs (91 kgs)
Topology	Transformerless
Self-consumption (night)	<2 W
Relative humidity	0-100%
Operating ambient temperature range	-22°F to 140°F (-30°C to +60°C)
Storage environment	-40°F to 176°F (-40°C to 80°C)
Ingress protection	TYPE 4X
Cooling concept	Intelligent redundant fan-cooling
Max.operation altitude	13,120 ft (4000 m)
Features
DC connection	MC4 connector
AC connection	OT Terminal (max.350 MCM
Display	LCD
Communication	RS485, Optional: Wi-Fi, Cellular

Packing & Delivery

Project Case

Customer Feedback

Company Profile

   Sunroveris an emerging brand in the photovoltaic industry.Sunrover's customers are located on all continents.We provide the highest quality products and the most professional services.We provide different design solutions for large, medium and small customers.We continue to develop and improve technology to bring a better experience to our users.
