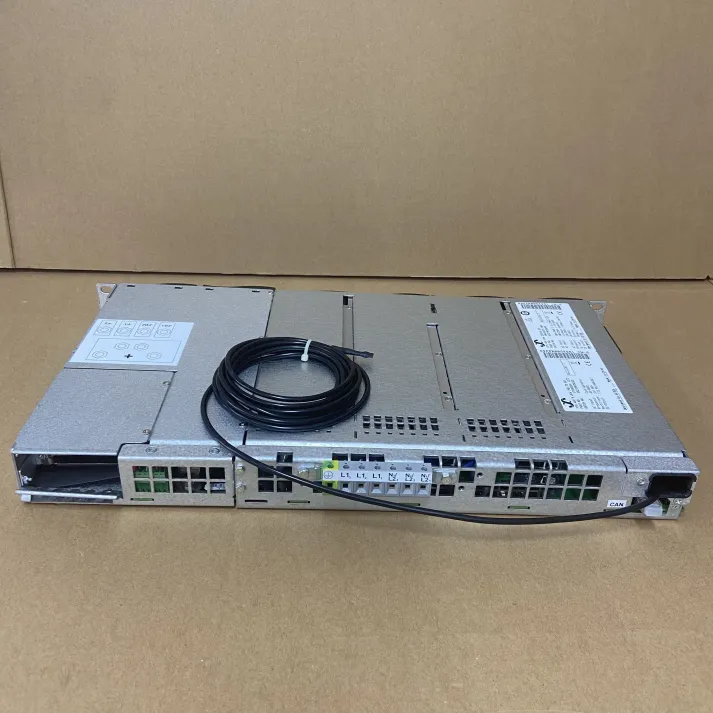

CTOS0301.1273 FPS 1U/3R Eltek Telecom Site DC Power Supply System 6KW
1600919596442_CTOS0301.1273
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Short Description:
*Compact HE power shelves
*Hot pluggable rectifiers
*FPS 24/1000 HE
*FPS 24/1000 HE SIL3
*FPS 48/1000 HE
*FPS 48/1800 HE
*270 mm depth
*1U height
*flush or mid mount
*AC or DC input
*Floating output
*48Vdc
*24Vdc
*Advanced control and monitoring
| Model Flatpack S 1U/ C+5R Flatpack S 1U/ 6R | |
| Part number 241122.900 241122.901 | |
| INPUT DATA | |
| Voltage (nominal) 185 - 305V AC/ DC | |
| Maximum current (per feed) 21Arms | |
| Mains configuration 3 x single phase | |
| Mains connection 6 x faston | |
| Frequency 45 - 66Hz | |
| OUTPUT DATA | |
| Maximum voltage 60VDC | |
| Maximum current 187,5Adc 225Adc | |
| Connection M6 insert nuts | |
| CONTROLLER | |
| Smartpack S1) External 2) | |
| MECHANICAL DATA | |
| Dimensions (W/ H/ D) 19" / 1U / 270mm (recommended minimum cabinet depth, 300mm) | |
| Weight (without rectifiers / controller) 2,8 Kg [6.17 lbs] | |
| OTHER SPECIFICATIONS | |
| Operating temperature 3) -40 to +85°C (-40 to +185°F) | |
| Coding Coding to prevent insertion of incorrect power modules | |
| Mounting Flush mount or mid mount | |
| DESIGN STANDARDS | |
| Electrical safety UL 60950-1 2ed, EN 60950-1 2ed | |
| EMC ETSI EN 300 386 V.1.6.1 EN 61000-6-1 (immunity, light industry) EN 61000-6-2 (immunity, industry) EN 61000-6-3 (emission, light industry) EN 61000-6-4 (emission, industry) |
|
| Environment ETSI EN 300 019-2-1 Class 1.2 ETSI EN 300 019-2-2 Class 2.3 ETSI EN 300 019-2-3 Class 3.2 |
|
| See applicable datasheet for Smartpack S Can be used with Compack, Smartpack 2 and Smartpack S controllers See rectifier and controller datasheet for details |
???? ???
