ME909J Mini PCI Express 4G LTE Module
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

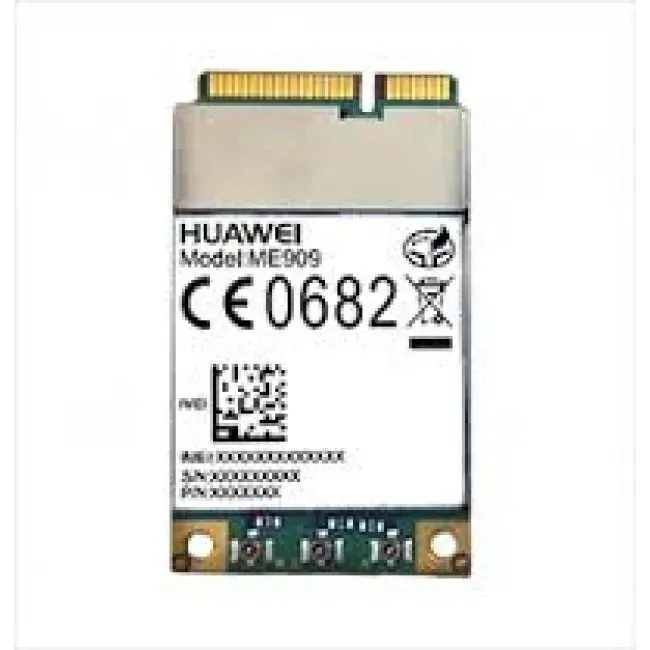

Huawei ME909J Mini PCI Express is a LTE module with a 145-pin LGA form factor mounted on a Mini PCI Express board, supporting LTE FDD, dual-band DC-HSPA+ and CDMA/EVDO for Japanese network coverage.
This module is part of Huawei's new family of modules, including MU509 (HSDPA), MU609 (HSPA+) and ME909 (LTE) which are all pin-to-pin compatible to enable a clear and easy path for future integration.This makes the integration of any one of these modules very future-proof.
With their ultra-compact design and extended operating temperature range, ME909 and it's siblings are the perfect platform for any M2M application.
Features
* LTE FDD B1/B11/B18/B19/B21
* UMTS Bands: 800/2100 (Dual-band DC-HSPA+/HSPA+/HSPA/UMTS)
* CDMA Bands: 800/1900 (CDMA/EVDO Rev.B)
* For Japan
* 145-pin LGA format
* FOTA support
* PCM Voice
* USB 2.0 Interface
Form Factor: 145-pin LGA form factor
Dimensions: 30 x 30 x 2.3 mm
Certifications: GCF, TELEC / JATE, RoHS Compliant
Speeds
* CDMA 1x: DL 153.6kbps / UL 153.6kbps
* EVDO Rev.B: DL 14.7Mbps / UL 5.4Mbps
* WCDMA PS: DL 384kbps / UL 384kbps
* DC-HSPA+: DL 42Mbps / UL 5.76 Mbps
* LTE FDD: DL 100Mbps / UL 50Mbps @ Bandwidth 20M (CAT3)
Antenna Interface
* DC-HSPA+/HSPA/UMTS: Receiver diversity
* CDMA/EVDO: Receiver diversity
* DC-HSPA+/HSPA+ DL: 2x2 MIMO
LTE DL: 2x2 MIMO
Control Options
* Standard AT commands (3GPP TS 27.007 and 27.005)
* Huawei extended AT commands
Operating temperature: -30°C to +75°C
GPS: GPS Standalone, A-GPS, GPS XTRA, GLONASS
???? ???
