P1 Optical Power Meter Fiber FTTH OPM Multi-Interface Light Failure Tester with POE Network 850-1625nm SC/FC/ST
1601541380099_P1-D1A
$40.00 USD
الكمية
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Products Description
P1 OPM Fiber Optic Photometer Handheld PON/OPM/VFL
Hand-held optical power meter, red-light integrated machine series products are mainly used for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing. It is con- trolled by a single chip microprocessor with complete functions.Widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields.The fuselage design meets the requirements of human body function and adopts advanced thermo-plastic moulding technology, which is beautiful and du-rable. The red-light integrator of optical power meter can be well protected by using embedded detectors and lasers. The machine has compact shape, automatic shutdown function, three red light modes, back light dis-play, wavelength memory function, optical fiber work identification, support user calibration, wide test range, support lighting
Detecting the online status of the light cat Suitable for 100Mbps gigabit optical modem
Test wavelength 1310?1490?1550
PON optical power meter tester
Resource verification
Release port
Check if the opticalcat is online
Clear portWeak light treatmentRelease port
Used for installation/operation
Fiber optic network maintenance

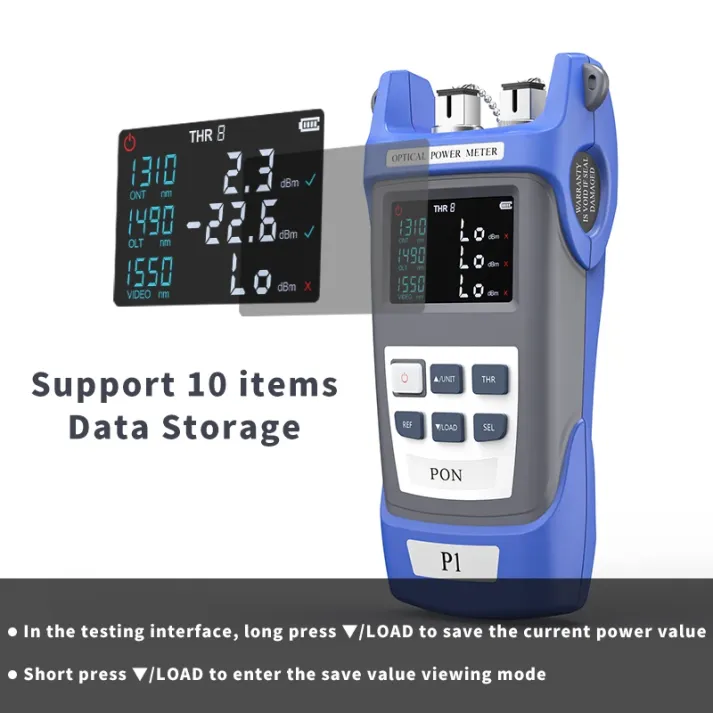

Support 10 itemsData Storage
ONT: Upstream signal1310nm detection interface
OLT/Video: DownwardSignal 1490/1550nmDetection interface
Product Application
1.FTTX
specification
|
item
|
value
|
|
Type
|
Fiber optic power meter
|
|
Model Number
|
P1
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
APT
|
|
Use
|
FTTH/PON
|
|
Warranty Time
|
2YEARS
|
|
Network
|
Wireless Lan, Wired LAN, POE, wiegand
|
|
Port
|
2
|
|
Power Source
|
DC 5V
|
|
Connector Type
|
sc
|
|
Power - Minimum Receivable
|
1.2
|
|
Frequency Range
|
0
|
|
name
|
mini opm 260O ptical Power Meter
|
|
Wavelength(nm)
|
1310/1490/1550nm
|
|
Measurement Range (dBm)
|
-70 +6db -50 +26db
|
|
Dimension(mm)
|
850-1625nm
|
|
Optical Connector
|
FC(interchangeable SC,ST) / as well as 2.5mm universal
|
|
Features
|
OPM
|
|
size
|
190*110*48mm
|
|
weight
|
400g
|
|
Power Supply
|
Two Segment 7 Batteries/ Rechargeable Lithium Batteries (Options)
|
|
package
|
1pcs packed in box
|
???? ???
