Fiber Optic Equipment 8-port Xgpon Board Cgid Business Olt Gpon Board Cgid

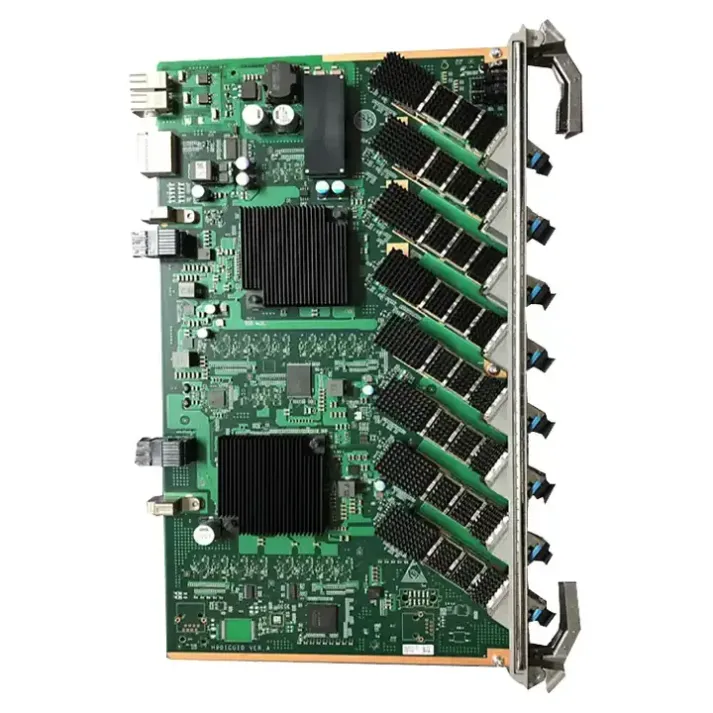

1601014049590_1PC/CARTONCGID Service Board Overview
CGID Service Board is 8-port XG-PON and GPON Combo interface board for MA5800 Series: MA5800-X17, MA5800-X15, MA5800-X7 and MA5800-X2 and they support various networking applications such as FTTB/FTTC/FTTD/FTTH.
Huawei CGID Service Board Specifications
| Brand | HW |
|
Model |
CGID |
| Port quantity | 8 |
| Forwarding capability | 80 Gbit/s |
| Rate mode | Asymmetric rate |
| Port rates | GPON upstream: 1.244 Gbit/s |
| GPON downstream: 2.488 Gbit/s | |
| XG-PON upstream: 2.488 Gbit/s | |
| XG-PON downstream: 9.953 Gbit/s | |
| Maximum split ratio | GPON: 1:128 |
| XG-PON: 1:256 | |
| T-CONTs per PON port | GPON/auto type ONU: 1024 |
| XG-PON: 2048 | |
| Service flows per PON board | 16368 |
| Maximum number of MAC addresses | 131072 |
| Maximum distance difference between two ONUs under the same PON port | 40 km |
| Supported ONU rates | GPON: 2.5G/1.25G (downstream rate/upstream rate) |
| XG-PON: 10G/2.5G (downstream rate/upstream rate) | |
| Type C protection (single-homing) | Yes (applicable to GPON channels) |
| Type C protection (dual-homing) | Yes (applicable to GPON channels) |
| FEC | Bidirectional |
CGID Service Board Features
- External interface
8* XG-PON&GPON port (XFP.Maximum split ratio: GPON: 1:128 XG-PON: 1:256
- Intelligent management channel
Level 4 HQoS to improve user experience.9216 jumbo frames, greatly improving transmission efficiency
Intelligent processing of XG-PON and GPON hybrid services to meet XGPON&.GPON service requirements, board types and spare parts reduction
- High density and energy saving
High density, low power consumption, support 2048 access users
Supports the maximum distance difference between the two ONUs to the PON port under the same PON port is 40 km, simplifying network planning
- Easy to operate and maintain
Real-time rogue ONT detection and isolation to ensure stable operation of the business
Variable-length OMCI improves upgrade efficiency and shortens business interruption time
