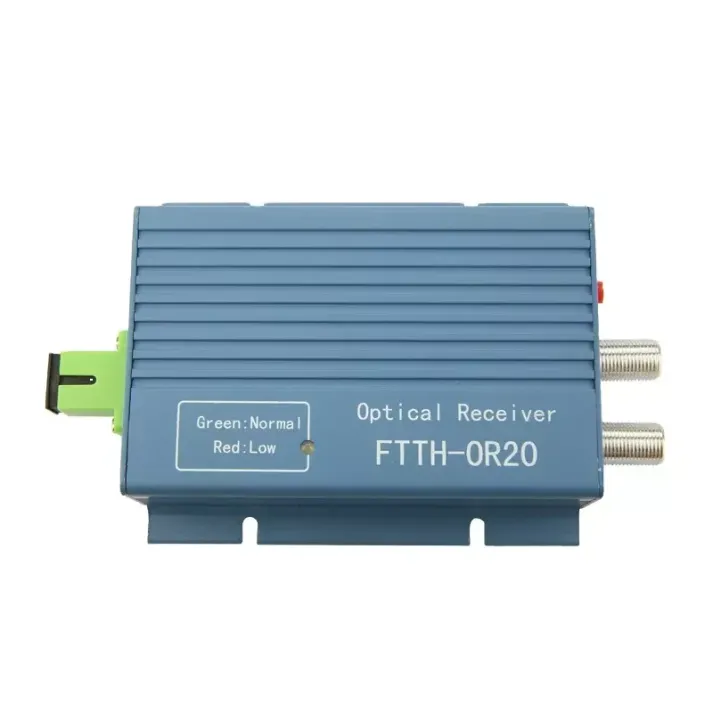

Hot Sale FTTH Mini CATV WDM Fiber Optical Receiver/FTTH Fiber Optic Cable Node
1600594208876_1PC/CARTON
|
Item |
Parameter |
Supplement |
|
|
Wavelength |
(nm) |
1260~1620 |
|
|
1540~1560 |
WF/WD |
||
|
Optical output |
(nm) |
1310,1490 |
WD |
|
Optical input range |
(dBm) |
+2~-10 |
Analog TV |
|
+2~-18 |
Digital TV |
||
|
Return loss |
(dB) |
≥45 |
|
|
Bandwidth |
(MHz) |
47~862 |
|
|
Flatness |
(dB) |
±0.75 |
|
|
AGC range |
|
0--9dBm |
Pin:-7.0~+2.0dBm |
|
AGC character |
dB |
≤±0.5 |
|
|
Output level |
(dBuv) |
≥79 |
OR20A 1 port Pin: 0~-9.0dBm |
|
≥75 |
OR20A 2 ports Pin: 0~-9.0dBm |
||
|
Output level control |
(dB) |
0-20 |
MGC |
|
Return loss |
(dB) |
≥14 |
47-862MHz |
|
Output impendence |
(Ω) |
75 |
|
|
Output port |
1/2 |
|
|
|
CNR |
(dB) |
≥51 |
Pin=-2dBm |
|
CTB |
(dB) |
≥61 |
Pin=-2dBm |
|
CSO |
(dB) |
≥60 |
Pin=-2dBm |
