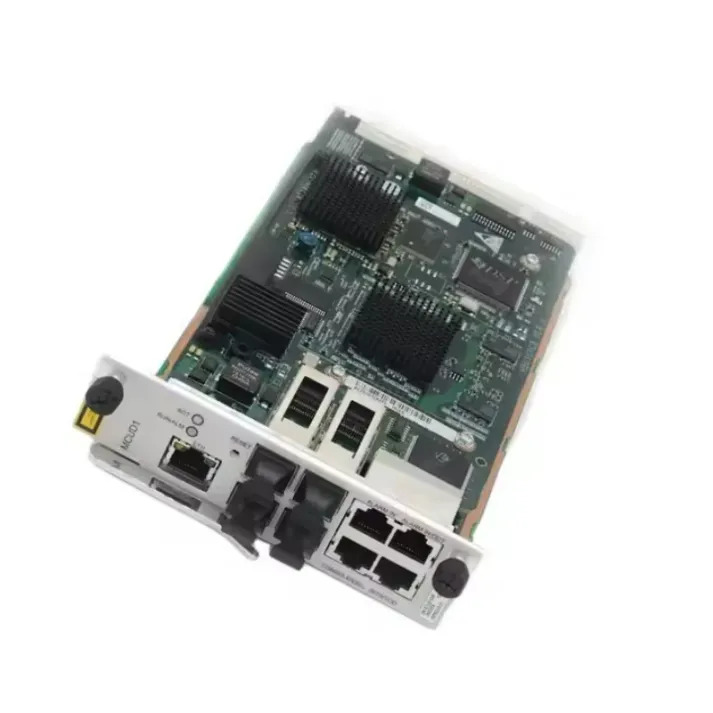

Original MCUD1 Control 10GE Uplink Board for MA5608T GPON EPON OLT Main Control 5G Network Access
10000027329548_custom
All MCU boards support the functions as below:
System control and management unit
Active/standby switchover and load sharing
Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
Environmental monitoring
Synchronization with the Ethernet clock
Temperature querying and high temperature alarming
Monitoring and management of the fan tray
Seven alarm digital inputs (DIs) and one alarm digital output (DO)
Copper and optical access
In the table,"Yes" indicates"supported" and"No" indicates"not supported".
Table 1 Major differences between MCU boards
|
Interface
|
|
Uplink: 2×GE(SFP) + 2×GE/10GE(SFP+)
|
|
|
|||
|
|
|
Ctrl: 1×Console(RJ-45) + 1×BITS/TOD
|
|
|
|||
|
Performance
|
|
SwCap: 256Gbps (active/standby)| 512Gbps (load sharing)
|
|
|
|||
|
|
|
MAC Tbl: 32K entries
|
|
|
|||
|
|
|
IPv4/IPv6 rts: 5.1K
|
|
|
|||
|
|
|
ACL rls: 896
|
|
|
|||
|
|
|
Max Frame: 2052B (9216B Jumbo)
|
|
|
|||
|
Power
|
|
Input: -48V DC
|
|
|
|||
|
|
|
Consumption: 29W/33W (static/max)
|
|
|
|||
