2SFP+ 2Ethernet Media Converter RJ45 SFP Fiber Optical Media Converter

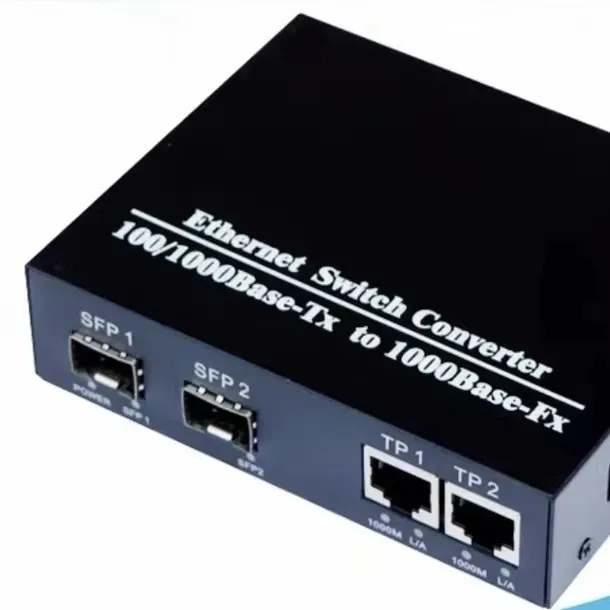

Name: 2*SFP+ 2*Ethernet Media Converter RJ45 SFP Fiber Optical Media Converter
SKU: 1601198501535_1PC
Price: 19.9 USD
Availability: InStock

$19.90 USD

Color

Solicitar cotización

Descripci?n del producto

1G media converter is a photoelectric converter that converts Ethernet electrical signals and photoelectric signals.1G transceiver can convert short-distance 1GBase-TX twisted pair electrical signals and long-distance 1GBase-FX optical signals to each other.This converter can be used as standalone unit or as slide-in module to the 19”converter rack Chassis for use at a central wiring closet.Different types of optical modules can be selected as needed, and the seamless connection between the optical signals of the Ethernet and the electrical signals.It not only can extend the transmission distance, but also has many advantages such as good data confidentiality, stable operation and easy maintenance.

Product Features

Adopt high-performance US Marvel chip to achieve non-blocking transmission switching performance and ensure higher security and stability of data transmission;Support Ethernet port 10Gbase-Tto10Gbase-SR/LR/ER/ZR;The fiber port supports 3R function (equalization amplification, clock extraction, integer regeneration), and the data transmission jitter is small;Transparent transmission of data with small delay;Supports 850, 1310, 1550nm and ITU T specified CWDM/DWDM wavelengths;Support DMI function of optical module;Support Loopback and return to functional testing;Support SFP+/XFP different interface optical modules;Support 5-20V wide voltage power supply;Support built-in power supply enclosure;Support centralized power supply management of racks;Support external power supply

Specification

Product Name	10Gbps media converter/transceiver
Standards	IEEE802.3, IEEE802.3U, IEEE802.3z, IEEE802.3ab, IEEE802.3an 10Base-T,100Base-T,1000Base-T,,10Gbase-T 10GBase-FX
Electrical Interface	Connector : RJ45
	Data rate: 10Gbps
	Duplex mode : Half / Full duplex
	Cable : Cat.6a, 7 or higher
Optical Interface	Connector : Depends on SFP+ module
	Data rate : 10Gbps
	Duplex mode : Full duplex
	Fiber type : SM 9/125μm, MM 50/125μm, 62.5/125μm
Transmission Distance	RJ45 : 100meters with Cat.6a, 7 or higher cable
Transmission Distance	Fiber : Depends on SFP+ module (up to 120km)
Maximum Packet Forwarding Rate	14,880,950/S
Work environment	Operating Temperature: 0 ~ 50?
	Storage Temperature: -10 ~ 70?
	Humidity: 5%~90% ( non-condensing )
LED Indicator	PWR: Green Illuminated to indicate unit is operating under normal operation
	TX Link/ACT: Green Illuminated indicates receiving link pulses from compliant copper Device and flashes when data being sent / received
	FX Link/ACT: Green Illuminated indicates receiving link pulses from compliant fiber Device and flashes when data being sent / received
Physical Characteristics	Dimension: 947126mm Weight: 0.8kg (external) body Color: Metal, Black
