4G LTE Radio Frequency Remote Unit 5909 2100Hz 02311 TBC RRU5909

Name: 4G LTE Radio Frequency Remote Unit 5909 2100Hz 02311 TBC RRU5909
SKU: 1601193109153_RRU5909-2100
Price: 500 USD
Availability: InStock

$500.00 USD

Color

Solicitar cotización

Descripci?n del producto

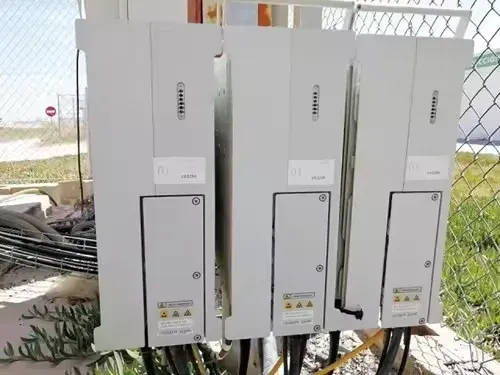

Remote Radio Unit

RRU5909-2100

RRU consists of the following stems:

* High speed interface unit * signal processing unit * power amplifier * doubler * expansion port * Power module

The RRU performs the following functions:

* Receives downlink baseband data from the BBU and sends uplink baseband data to this baseband unit.

* Receives an RF signal from the antenna system, down-converts the signal to an intermediate frequency (IF) signal, amplifies the IF signal, performs analog-to-digital conversion, and up-converts the RF signal to the transmit (TX) band.

* Multiplexing the receive (RX) and TX signal RF channels allows these signals to share the same antenna channel and filter the RX and TX signals.

* Available with built-in offset tee (BT).The built-in BT couples the RF signal and OOK signal and transmits them through TX/RX port A.The built-in BT is also a Tower Mount Amplifier (TMA).

*RRU can use AC/DC power supply module.In this case, this RRU is called a remote communication unit.

RATs and frequeney bands supported by an RRU5909
Type	Frequency Band (MHz)	Receive Frequency Band (MHz)	Transmit Frequency Band (MHz)	RAT	IBW (MHz)
RRU5909	900 EGSM	880 to 915	925 to 960	GSM, UMTS, LTE FDD.LTENB-IoT.GU.GL.UL.GM.UM.LM, GLM.ULM, and GUL	35
	900 PGSM	890 to 915	935 t0 960	GSM.UMTS.LTE FDD, LTENB-IoT, GU.GL.UL.GM.UM.LM.GLM.ULM, and GUL	25
	1800	1710 to 1785	1805 to 1880	GSM. LTE FDD.LTE NB-IOT.GL. GM, and LM	45
	2100	1920 to 1980	2110 to 2170	UMTS, LTEFDD. and Ul	60

4G LTE Radio Frequency Remote Unit 5909 2100Hz 02311 TBC RRU5909
