All Copper RF Connectors Including BNC Female to Female RF Coaxial Adapter and Male to Male RG58 Adaptor
|
INTERFACE
|
|
|
||
|

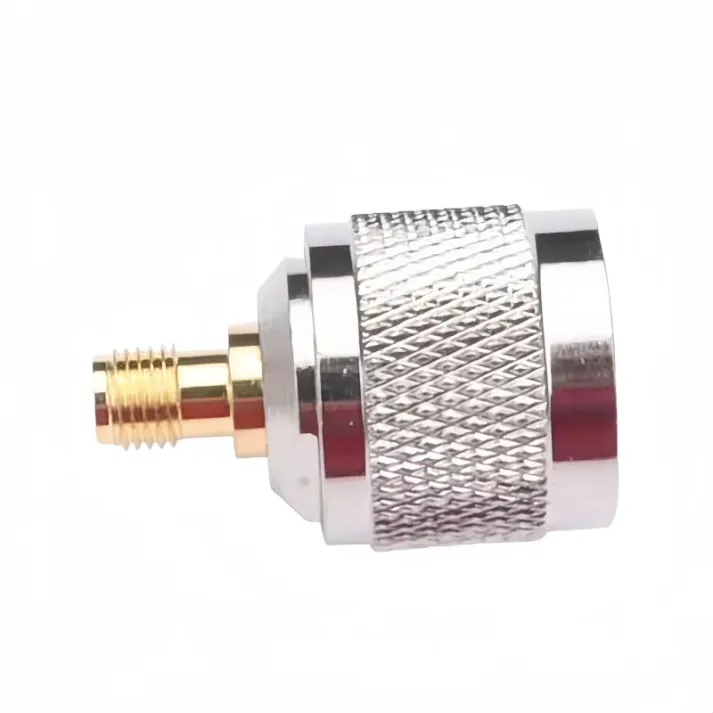

SMA female to N Male |
|
According to IEC 60169-16 |
||
|
Mounting angle
|
|
Straight
|
||
|
ELECTRICAL PROPERTIES
|
|
|
||
|
Impedance |
|
50 |
||
|
Frequency range,
|
GHz
|
DC~3
|
||
|
3rd order inter-modulation Inner contact resistance Outer contact resistance
Insulation resistance |
dBc@2×20W m
m M•km |
≤-155
≤1.0 ≤0.4 ≥5000 |
||
|
Dielectric withstanding voltage
|
V, RMS,50Hz, at sea level
|
≥2500
|
||
|
VSWR.
|
≤
|
1.06
|
||
|
Insertion loss
|
dB
|
≤0.08
|
||
|
MATERIAL& PLATING
|
|
|
||
|
Inner contact |
|
Brass alloy plated with silver |
||
|
Outer contact
|
|
Brass alloy plated with Tri-Alloy
|
||
|
Insulator
|
|
PTFE
|
||
|
ENVIRONMENTAL PROPERTIES
|
|
|
||
|
Temperature range,?
|
|
-40~+85 |
||
|
Water proof
|
|
IP67
|
||
|
2011/65EU(ROHS)
|
|
compliant
|
||
