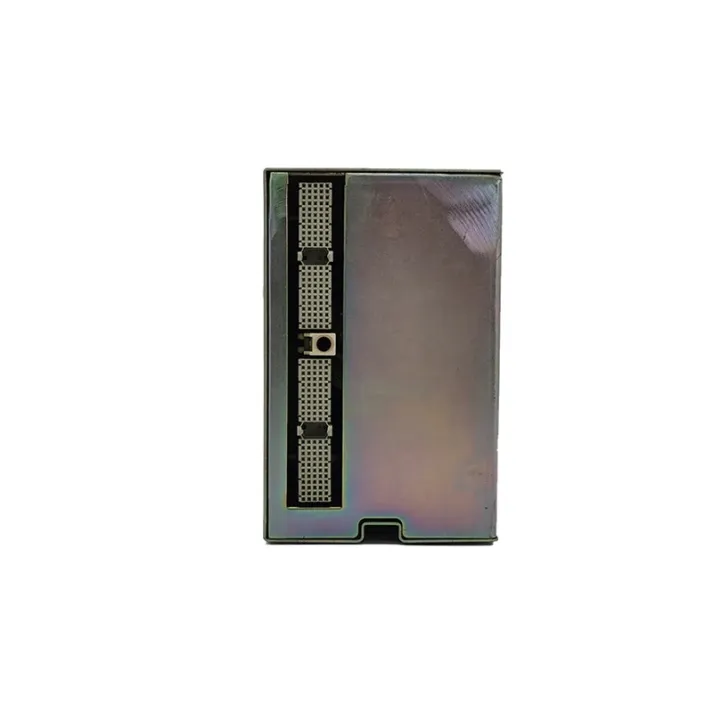

CSU401S Monitoring Unit High Precision Data Acquisition Monitoring Modlue for DC Power Supply System
1601699004922_CSU401S
|
CSU401S
|
|
|
|
Working voltage range
|
18~70VDC
|
|
|
Rated working voltage
|
48Vdc
|
|
|
Size
|
238.6*171*60mm
|
|
|
Weight
|
2.5~3.5kg
|
|
|
Display and indication
|
LCD liquid crystal display; Green (normal)/yellow (alarm)/red (fault) indicator light
|
|
|
Protection level
|
IP20
|
|
|
Rectification module management
|
supports ≤ 16 ZXD series rectification modules; Intelligent sleep/wake-up
|
|
|
Load control
|
two-level power-off (primary/secondary); Support remote/local control
|
|
|
Operating Temperature
|
-20?~+60?
|
|
|
Storage Temperature
|
-40 ? ~+70 ?
|
|
Purchase Notice
2.High Reliability:Supports dual-level load shedding and over 100 alarm types, ensuring uninterrupted power for critical loads.
3.Flexible Expansion:Compatible with IO extension boards and fuse detection, adapting to complex, large-scale power systems.
4.Remote Operation:RS-485/CAN communication enables real-time monitoring and configuration from a central management platform.
5.Wide Adaptability:Operates in extreme temperatures (-20°C to +60°C) and supports up to 16 rectifier modules for scalable power
capacity.
