For Eaton 93PR Series Modular UPS System Software and Communication Accessories for Communication & Networking
1601603595559_Brown_NETWORK-M2
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|

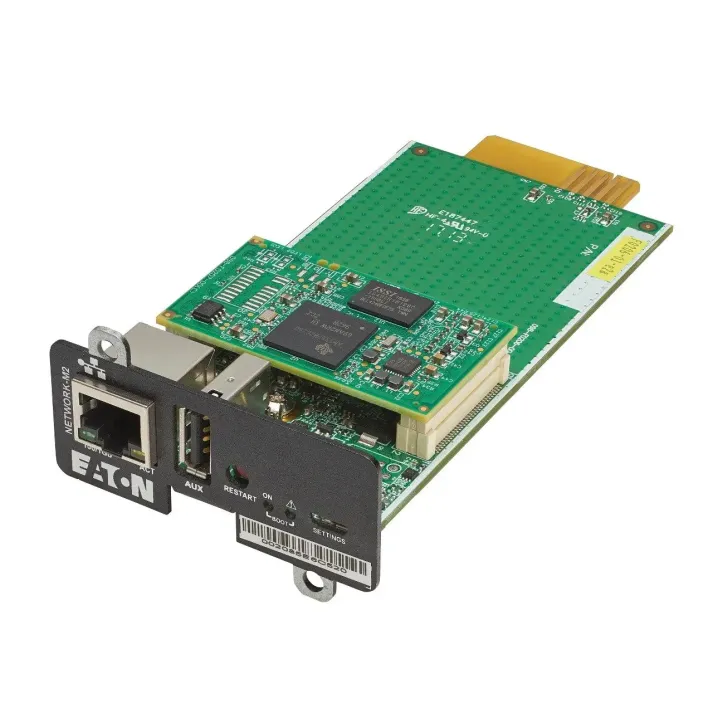

Eaton Gigabit Network Card(NETWORK-M2)
|
|
|
|
Features
|
Web/SNMP Communication
|
|
|
Supported UPS
|
5SC Rack and Rack, 5P, 5PX, 9PX, 9SX, 9E, 93E, 91PS, 93PS, 93PM
|
|
|
Compatibility
|
SNMP v1 and v3, as well as IPv4 and IPv6
|
|
|
Protocol Support
|
Gigabit Ethernet, 10/100/1000 Mbits, Auto-Negotiation, HTTP, HTTPS, TLS 1.2, SNMP v1, SNMP v3, NTP, SMTP, SMTPS, DHCP, CLI, SSH,ARP
|
|
|
UPS Slot Type
|
Mini Slot
|
|
|
Network Support
|
Ethernet 10/100/1000BaseT
|
|
|
Temperature and Humidity Monitoring
|
Yes
|
|
|
Software Support
|
IPM 1.61 and later, IPP 1.61 and later, any SNMP-compliant Network Management System (NMS)
|
|
|
Supported MIBs
|
MIB II - Standard IETF UPS MIB (RFC 1628) – Eaton PowerMib
|
|
|
Supported Shutdown Operating Systems
|
Microsoft Windows, UNIX, and Linux
|
|
|
Local Language Support
|
English, French, German, Italian, Spanish, Simplified Chinese, Traditional Chinese, Japanese
|
|
|
Operating Temperature
|
0 to 40°C
|
|
|
Operating Humidity
|
Up to 90% relative humidity, non-condensing
|
|
|
Power Input
|
5V-12V
|
|
|
Current Consumption
|
Maximum 500/1000mA, depending on UPS
|
|
|
Dimensions (H x W x D)
|
132 x 66 x 42 mm
|
|
|
Weight
|
70 g
|
|
|
Dedicated Temperature and Humidity Sensor(EMP DT1H1C2)
|
|
|
|
Type
|
Environmental Monitoring Device
|
|
|
Compatibility
|
The EMPDT1H1C2 environmental monitoring probe is compatible with Network-M2 and Eaton Rack PDUs, including G3 (firmware 4.x or later), G3HD, and G3+
|
|
|
Dimensions (L x W x H)
|
57.6 x 37.6 x 29.3 (mm)
|
|
|
Weight
|
1.19 oz (34 g)
|
|
|
Eaton Industrial Gateway (INDGW-M2)
|
|
|
|
Features
|
Modbus/Facility/Web/SNMP
|
|
|
Supported UPS
|
5SC Rack and RT, 5P, 5PX, 9SX, 9PX, 9E, 91PS, 93E, 93PS, 93PM
|
|
|
UPS Slot Type
|
Mini Slot
|
|
|
Network Support
|
Ethernet 10/100/1000BaseT
|
|
|
Temperature and Humidity Monitoring
|
Yes, using EMP Gen 2
|
|
|
Software Support
|
IPM 1.61 and later, IPP 1.61 and later, any SNMP-compliant Network Management System (NMS)
|
|
|
Supported MIBs
|
MIB II - Standard IETF UPS MIB (RFC 1628) – Eaton PowerMib
|
|
|
Supported Shutdown Operating Systems
|
Microsoft Windows, UNIX, and Linux
|
|
|
Local Language Support
|
English, French, German, Italian, Spanish, Simplified Chinese, Traditional Chinese, Japanese
|
|
|
Operating Temperature
|
0 to 40°C
|
|
|
Operating Humidity
|
Up to 90% relative humidity, non-condensing
|
|
|
Power Input
|
5 to 12V
|
|
|
Current Consumption
|
Maximum 500/1000mA, depending on UPS
|
|
|
Dimensions (H x W x D)
|
132.08 x 66.04 x 43.18 mm
|
|
|
Weight
|
70 g
|
|
