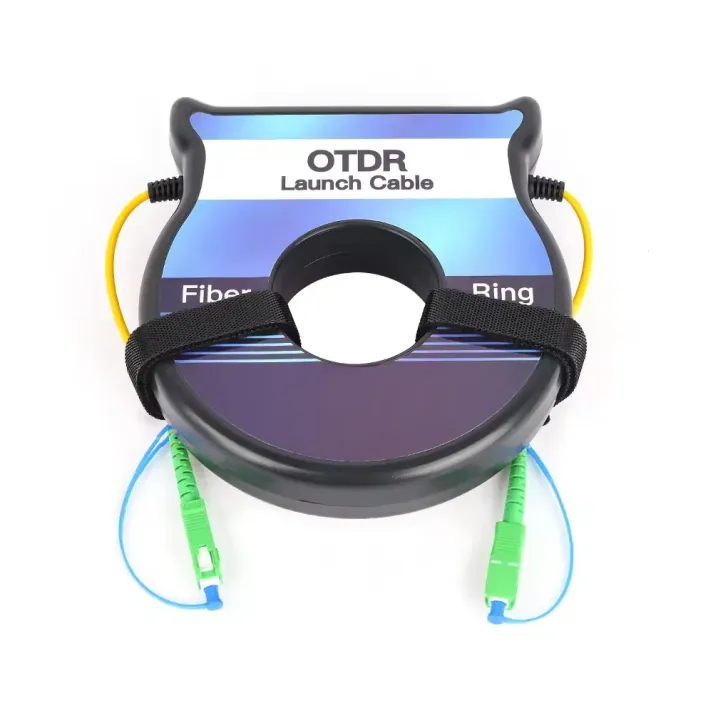

FTTH Optical Product Fiber Optic Tool SC/APC-SC/APC SM G652D 300M OTDR Launch Cable Ring

Features& Applications Compact, rugged, lightweight For use as OTDR launch cable 100m 300m 500m 1km 2km lengths For use as OTDR receive cable standard Measure insertion loss and reflectance of near- and far-end connections of a fiber Available with a variety of connector styles optic link using an OTDR Compact!Fits easily in OTDR cases or kits Use to test link loss with an OTDR

Testing?Inspection and Location OTDR optical fiber launch cable is used to measure the loss and reflectivity of the proximal connection and the remote non-comupt insertion of the optical fiber line using OTDR.Each OTDR launch cable can be used as an OTDR transmiting and receiving cable, both of which were nepessary to eliminate blind spots when measuring the complete line loss of the optical fiber with OTDR. OTDR launch cable adopts coiled design, easy to carry, compact and light.Various length options, very suitable for short, medium,long distance fiber network test applications. How to Generate a Baseline Trace Using Fibre Rings ?Use the Fibre Ring as a launch cable.Connect the Fibre Ring between your OTDR and the fbre link under test.This will allow you to meesure the loss of the neer-end connection. ?Use the Fibre Ring as a receive cable.Connect the Fibre Ring to the far-end connector of your fibre link under test.This will allow you to measure the loss of thefar-end connection. .By using the jump cable as a transmiting and receiving cable.You can measure the total insertion loss of the fiber link.

1pcs19*16.5*4cm 50pcs per carton51*42*40CM 21kgs
