Used Xpon Ont Gm220-s Modem Router Wifi Gpon Onu Terminal ONT

Name: Used Xpon Ont Gm220-s Modem Router Wifi Gpon Onu Terminal ONT
SKU: 1601603226598_20PCS/CARTON
Price: 2.9 USD
Availability: InStock

$2.90 USD

Couleur

20PCS/CARTON

Demander un devis

Description du produit

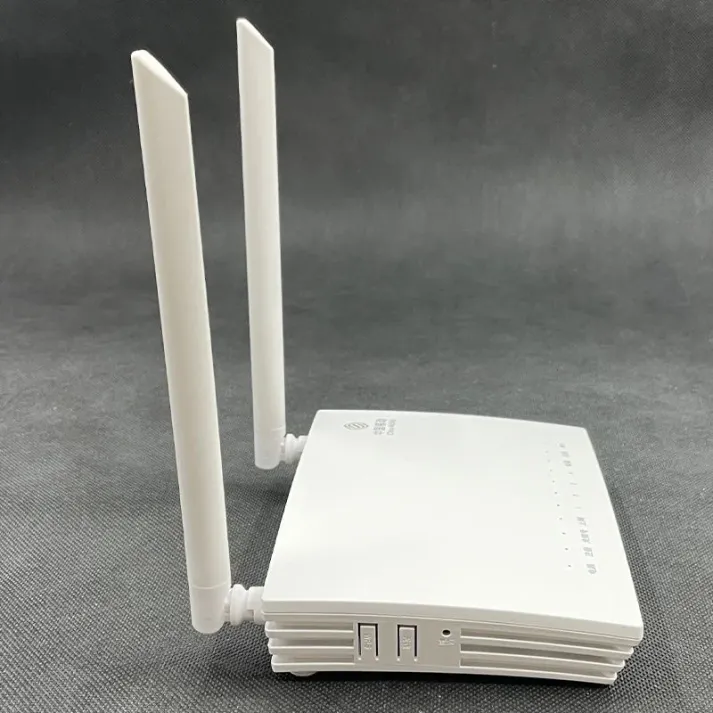

GM220-S is a fast, convenient, flexible, secure and highly integrated GPON broadband connection device.It provide 3FE +1 GE interface, 1 VOIP interface ,1 USB interface and 1 WiFi interface, it’s very suitable for home and small business users and can meet the requirements of FTTH high speed data transfer.

Model	GM220-S
User interface	310/100M RJ45, 110/100/1000M RJ45, 1USB, 1VOIP, 1*WiFi
PON	Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps Network coverage radius: 20km Optical receive sensitivity: ≥-28dBm Luminous power:<0dBm Security: ONU authentication mechanism
WiFi	IEEE 802.11b/g/n WIFI((300Mbps)
Protocol	Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1b/g/n IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP
VLAN	Port-based VLAN GVRP IEEE 802.1Q VLAN
QoS	Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent head of line WR, SP queue scheduling algorithm Port rate limit
Security	IEEE 802.1x, access control based on port; support local and remote RADIUS CHAP,EAP certification Storm control, port protection
Management	Support various management modes such as Web, TELNET Support debug function
Environment	Operating temperature: 0?~60?; Operating humidity: 10%~85% (no-condensation)
	Storage temperature: -40?~80?; Storage humidity: 5%~95% (no-condensation)
Power supply	Input AC 110~240V Output DC 12V/1A
Power Consumption	12W

Used Xpon Ont Gm220-s Modem Router Wifi Gpon Onu Terminal ONT

Used Xpon Ont Gm220-s Modem Router Wifi Gpon Onu Terminal ONT

Specification	HG8545M5
Dimensions (H x W x D)	30 mm x 145 mm x 96 mm (without an external antenna and pads)
Operating temperature	0°C to 40°C
Operating humidity	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50/60 Hz
System power supply	11–14 V DC, 3 A
Static power consumption	3.1 W
Maximum power consumption	7.15 W
NNI	GPON
Optical Connector	SC/APC
Ports	1POTS + 1GE + 3FE + 2.4G Wi-Fi
Indicators	POWER/PON/LOS/LAN/TEL/WLAN/WPS
