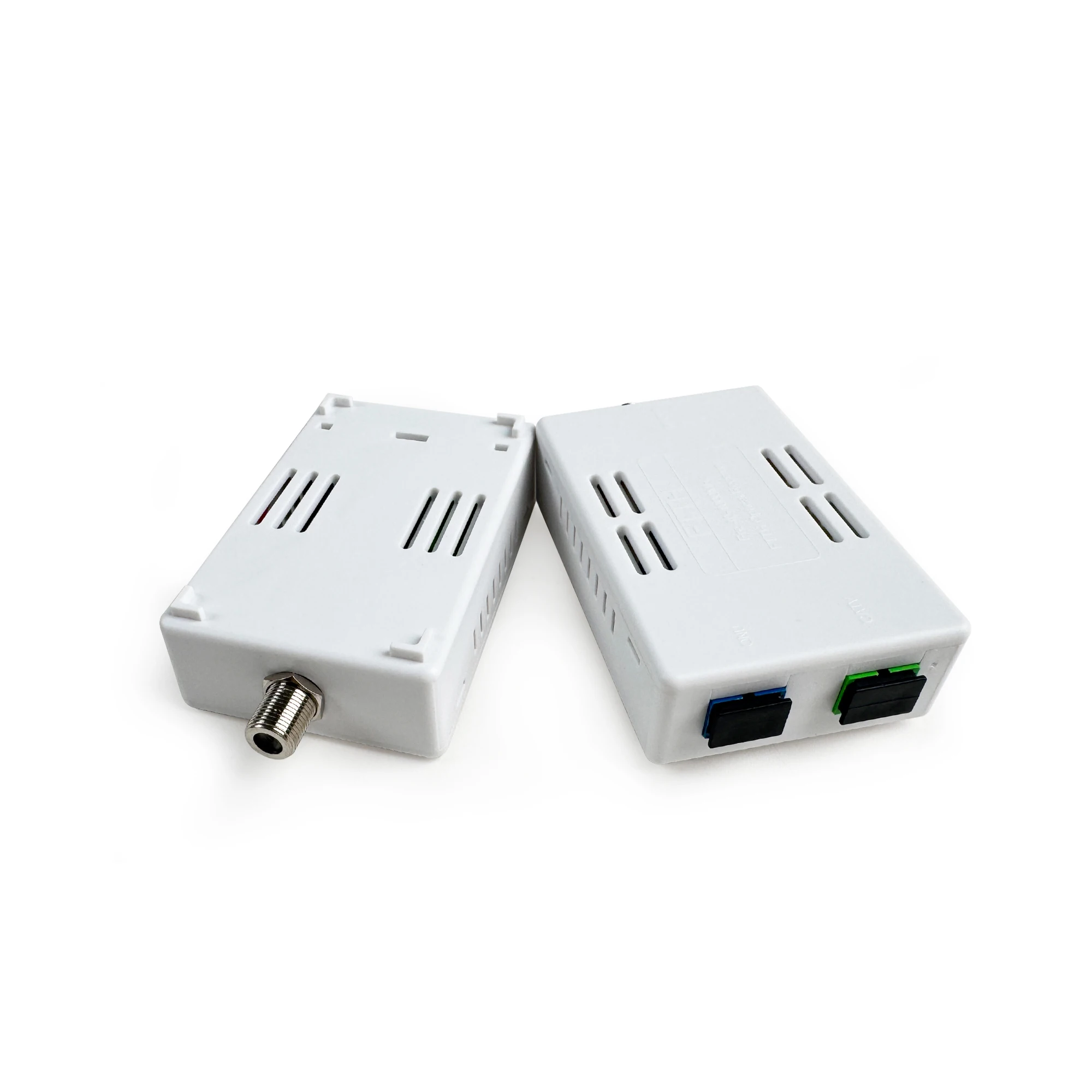

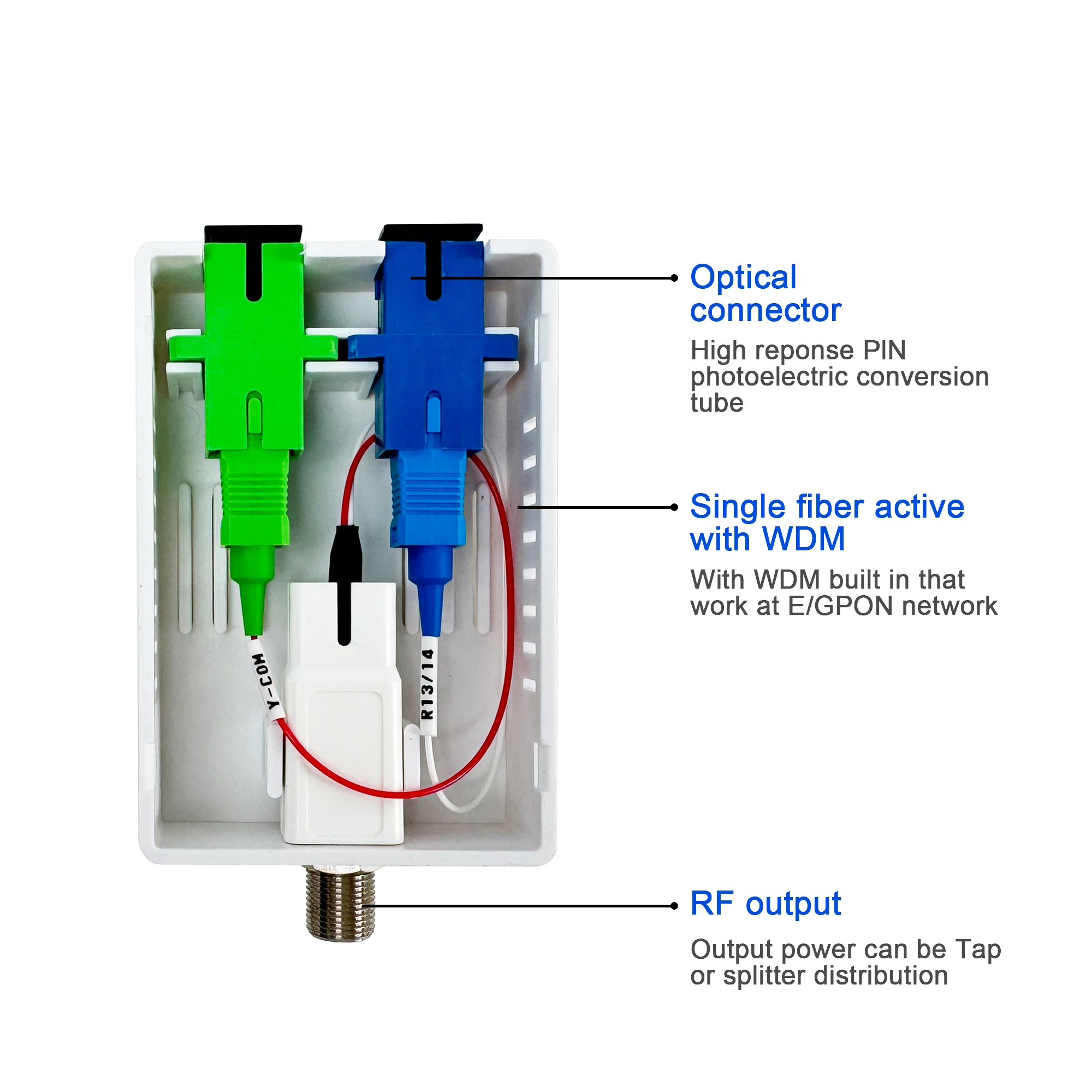

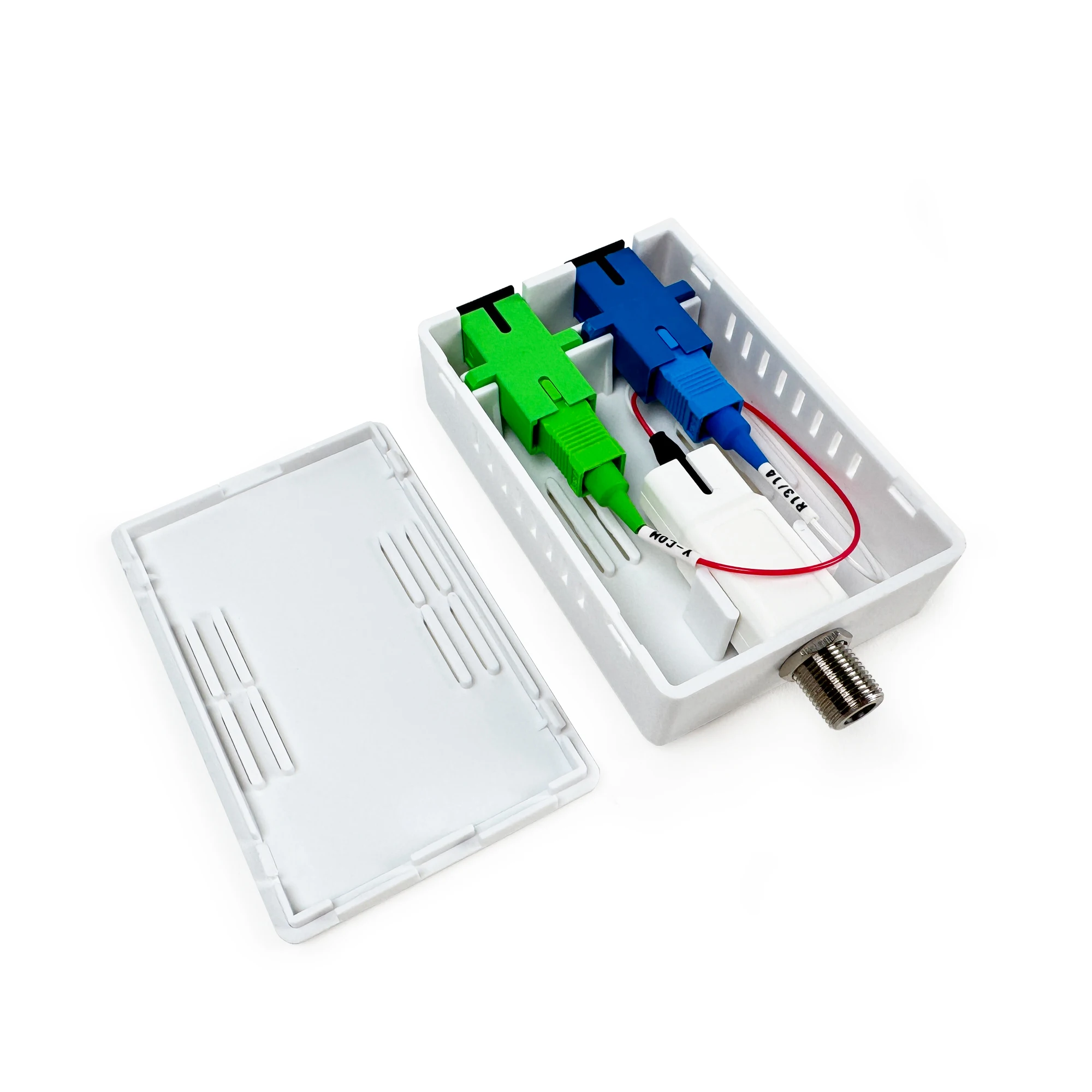

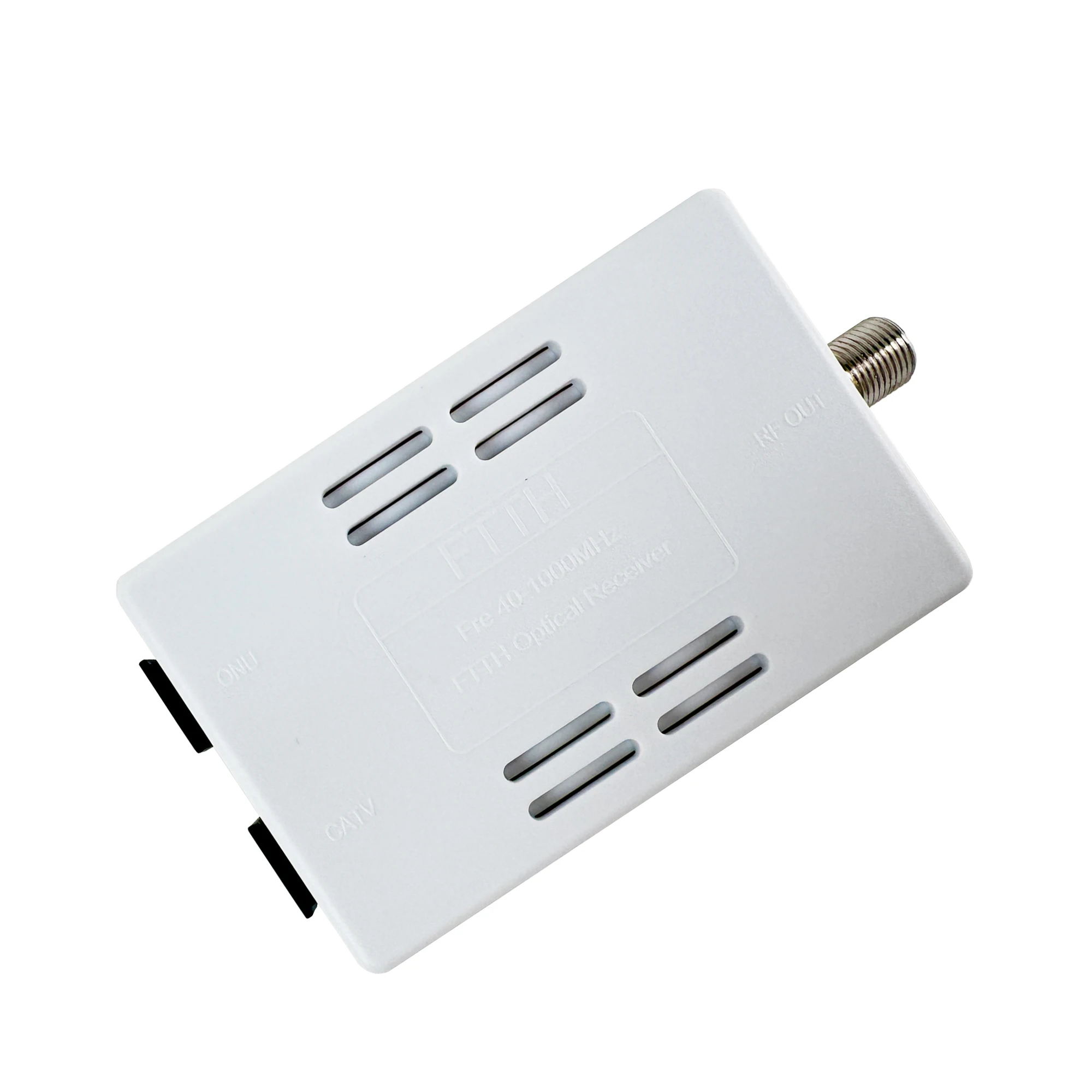

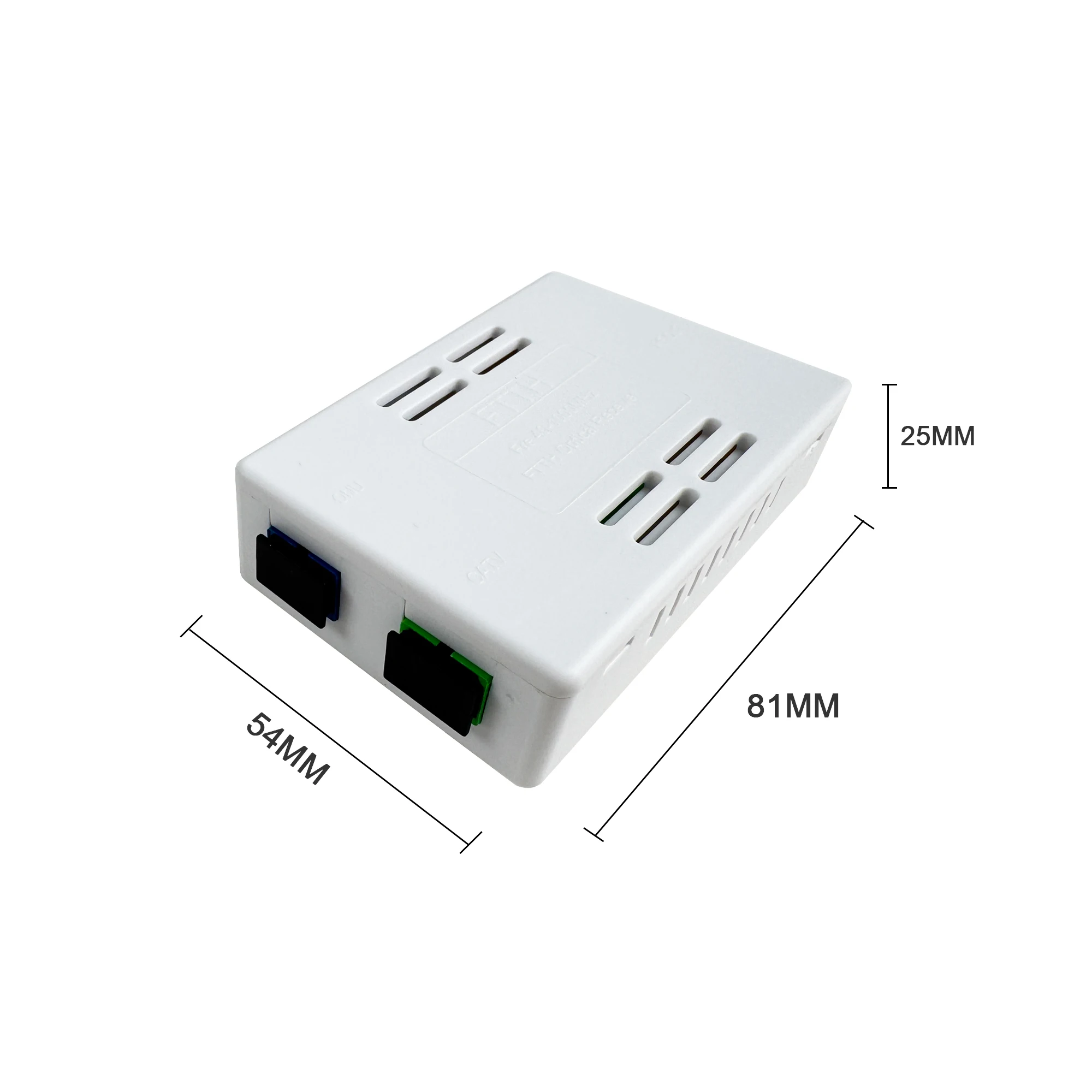

FTTH CATV Optical receiver with WDM Passive Node RF Signal Converter Fiber Optic Equipment
1601265663587_Customized Design
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
UNIT | PARAMETER | |||
Optical parameters: | ||||
Input optical power | dBm | -10~0 | ||
Reflection loss | dB | >45 | ||
Received light wavelength | nm | 1310~1550 | ||
Input optical interface | SC/APC-SC/PC | |||
Link performance:: | ||||
C/N | dB | ≥51 | ||
C/CTB | dB | ≥65 | ||
C/CSO | dB | ≥62 | ||
RF parameters: | ||||
Frequency Range | MHz | 47~1000 | ||
In-band flatness | dB | 1.5 | ||
Output level | dBμV | 50(-10dBm test) | ||
60(-5dBm test) | ||||
64(-3dBm test) | ||||
70(0dBm test) | ||||
RF output reflection | dB | ≥16 | ||
RF output impedance | Ω | 75 | ||
Mer | dB | 33(-10dBm test) | ||
dB | 37(-5dBm test) | |||
dB | 37(-3dBm test) | |||
dB | 36(0dBm test) | |||
Application | GEPON | |||
????????? ? ????
Yantai Boxin International Trade Co., Ltd.
??????? ?? ????? ??? ???? ? WhatsApp ??? ????????? email. ID WeChat ????????? ? ??????? ????????.
Технические характеристики
Частоты и диапазоны
Supports 2G/3G/4G/5G frequency bands. Detailed band specifications depend on the specific model and configuration. Contact our sales team for the exact band coverage of your target market.
Интерфейсы и разъёмы
Standard telecom interfaces including optical ports, RF connectors, Ethernet ports and power interfaces. Connector types and quantities vary by product model. Full interface specifications available in the product datasheet.
Питание и потребление
Operating voltage range, power consumption and power supply requirements differ by equipment type. Typical operating temperature range: -40°C to +55°C. Detailed power specifications provided on request.
Сертификация и соответствие
Products comply with CE, RoHS, FCC and ISO 9001 standards where applicable. Certification documents and test reports are available for verified B2B customers upon request.
Совместимость и внедрение
Compatible with major telecom infrastructure vendors. Suitable for indoor and outdoor deployment scenarios including base stations, transmission nodes and optical distribution networks. Custom configurations available for large-scale projects.
Запросить оптовое предложение
Нужен этот продукт оптом? Свяжитесь с отделом продаж для B2B-цен, кастомизации и доставки. Отвечаем в течение 24 часов.
