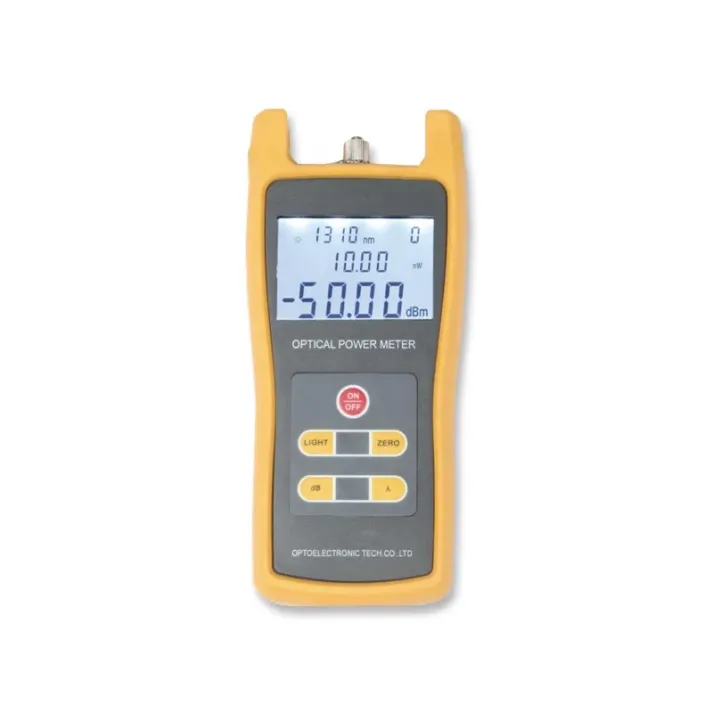

Optic Fiber Cable Tester Power Meter for Optical Fibers Joinwit Jw3208 Optical Power Meter opm
1600560068274_-70~+6 -50~+26
¥168.00 CNY
Количество
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
-
Optical Power Meter
Qingdao APT handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
|
type
|
JW3208A
|
JW3208C
|
|
|
Wavelength(nm)
|
800~1700nm
|
|
|
|
Detector
|
InGaAs
|
|
|
|
Measurement Range (dBm)
|
-70~+6
|
-50~+26
|
|
|
Uncertainty
|
±5%
|
|
|
|
Calibrated Wavelength(nm)
|
850,980,1300,1310,1490,1550
|
|
|
|
Resolution(dB)
|
0.01
|
|
|
|
Optical Connector
|
FC(interchangeable SC,ST) / as well as 2.5mm universal
|
|
|
|
Power Supply
|
Alkaline Battery(3 AA 1.5V batteries)
|
|
|
|
Battery Operating Time
|
240 h with 1.5V Battery(3)
|
|
|
|
Operating Temperature(°C)
|
-10 ~ +60
|
|
|
|
Storage Temperature(°C)
|
-25 ~ +70
|
|
|
|
Relative Humidity
|
0 to 95% (non-condensing)
|
|
|
|
Dimension(mm)
|
175x82x33
|
|
|
|
Weight(g)
|
310
|
|
|
Features
.*User self calibration function
*Comfortable LCD display and optional backlight LCD display supports night operation
*Power measurements in dBm or mw and insertion loss in dB
*Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
*10 minutes Auto-off function can be activated or deactivated.
*Comfortable LCD display and optional backlight LCD display supports night operation
*Power measurements in dBm or mw and insertion loss in dB
*Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
*10 minutes Auto-off function can be activated or deactivated.
|
MODEL
|
INCLUDES
|
|
All JW3109 Models
|
JW3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries,User Manual, Cotton swabs and Soft carrying case.
|
????????? ? ????
